Accesories

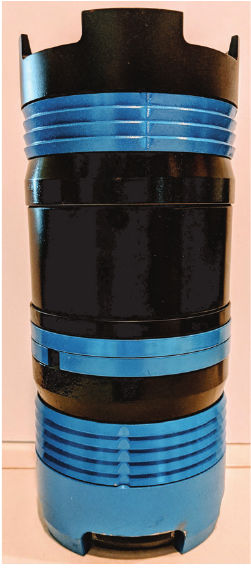

T662 HULK Plug Pump Catcher
Product Description:
The HULK plug is a Large-Bore wireline set ESP Pump Catcher plug. The HULK Plug was tested to 200,000 lbs. force and is calculated to hold 300,000 lbs. of force without moving. A big advantage with this plug is the large ID. The pressure drop across the Plug is minimal and will not restrict production while using an ESP.
Another big advantage comes when it is necessary to fish an ESP pump that has fallen off the production string. The HULK plug keeps the pump stationary in the vertical or horizontal casing sections of the well bore. A large time saver when fishing the ESP pump from the well.
Plug Removal is easy. A milling tool and a packer plucker used in combination to retrieve the HULK Plug. Simply mill off the top of the plug and the upper slips and pull the HULK from the casing. With the special slip material and Heat Treat the upper and lower slip keeps them in a single configuration. This makes it easy to mill the upper slip and retrieve the lower slip as one piece.
Product Features:
Large Bore Design — Large ID provides maximum flow back at high rates with minimal pressure drop. Large bore keeps sand from accumulating around the plug.
Slip Design – Armor™ — The Armor Slip design will not preset going in the well. Also allows for easy drill up.
Money Savings — No need for Coil and down hole assembly to drill up the plug like a composite Plug and Perf Job. Plug stays in place and allows flow though the large ID.
Plug Removal — Tested Plug weight capacity 200,000 lbs. and calculated to 300,000 lbs.
Material Benefits — The HULK Plug is machined cast iron. This allows you the capability to leave the plug in the well as long as desired.
