PRODUCT DESCRIPTION

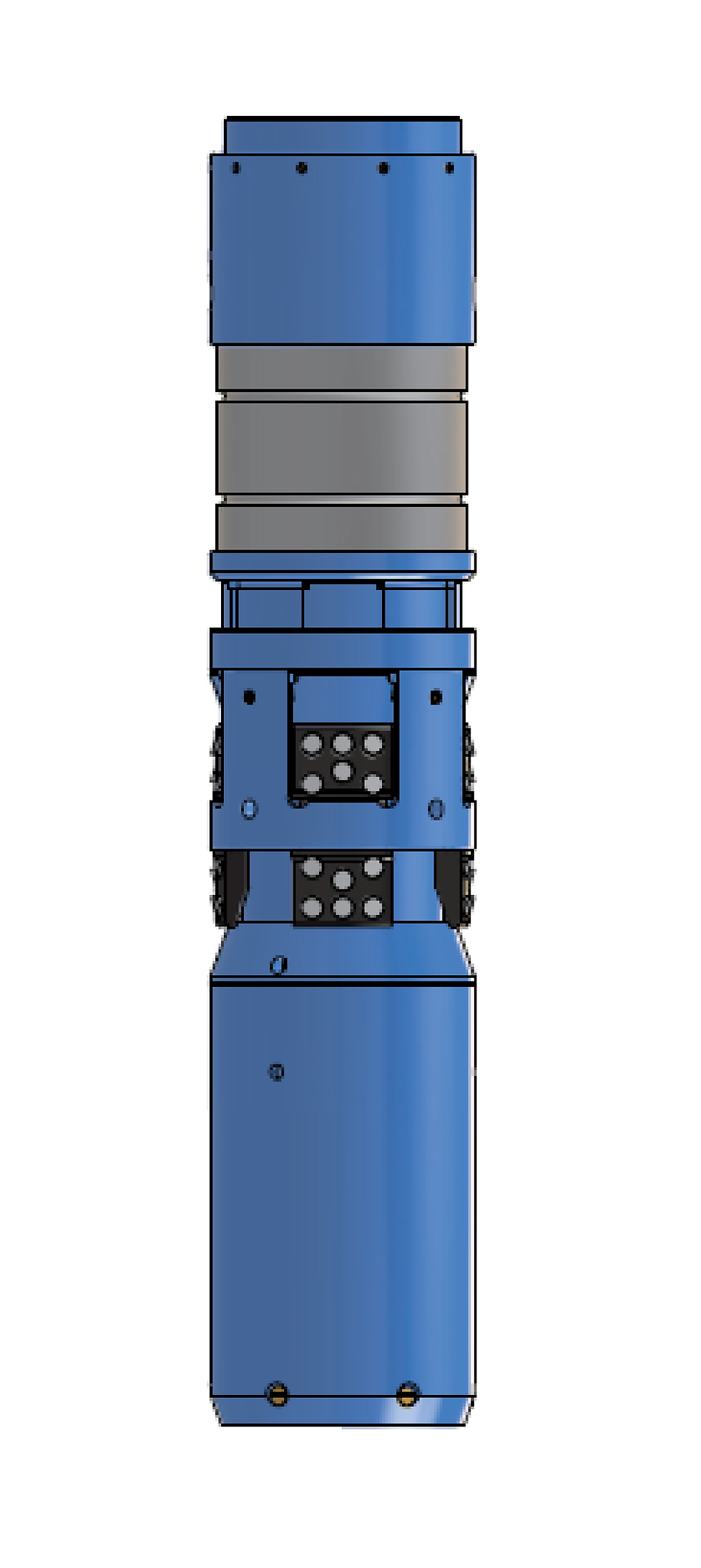

The Target Completions T237 Catch 22 is a wireline set retrievable bridge plug/packer used for the installation of esp pumps. The Catch 22 has an internal pump out plug system that allows the tool to hold high pressure from below and with adjustable shear screws allows the plug to pump out at a pre-determined value with applied pressure from above. Once set and pump out plug pumped out, the Catch 22 is capable of catching esp pumps when the tubing string fails or is dropped from surface. Unlike other plugs on the market the Catch 22 is fully retrievable using the Catch 22 T234 retrieving tool. The Retrieving tool operates with straight set down weight to engage and straight pickup to retrieve, with built in safety shear release if plug is damaged and cannot be retrieved by normal release

procedures. The Catch 22 plug upper components are designed from proprietary cast iron with clutch engaging components allow the plug to be milled easily and caught using a packer plucker.

The Catch 22 can be used for multiple applications:

- ESP CATCHER

- TEMPORARY PLUG FOR HOLDING PRESSURE FROM BELOW

- RETRIEVABLE SEAL BORE PACKER (CAPABLE OF LANDING ONE SEAL UNIT)

- MULTI SET MULTI RETRIEVE FRAC PACKER APPLICATION
